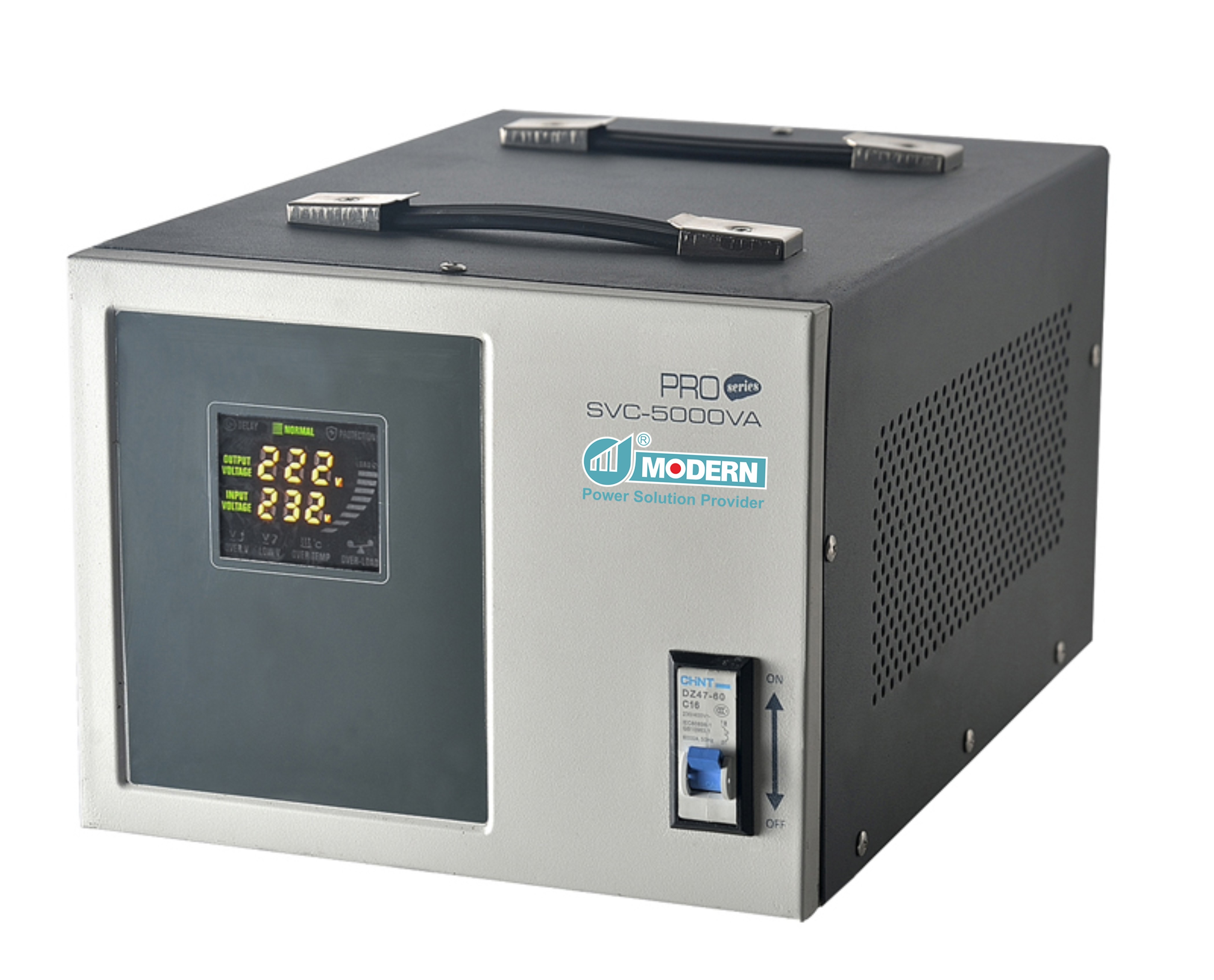

Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54

Name: Copper Alumimum SVC05KVA30KVA Avr Voltage Regulator Stabilizer IP2054
Brand: Modern
Price: 50 USD

Buy cheap Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54 product

Brand Name : Modern

Model Number : 5KVA,10kVA

Certification : CE,ISO9001

Place of Origin : CHINA

MOQ : 5

Price : $50-$140

Payment Terms : T/T, L/C

Supply Ability : 1000 Sets Per Month

Delivery Time : 3-4 weeks days

Packaging Details : WHITE BOX OR MAIL BOX

Power supply : AC 150V-260V

Phase : Single phase

Color : Red ,Black,White

Frequency : Power frequency

Usage : SVC,DBW,TND

SIZE : small

Contact Now

Line condition,SVC-0.5KVA~30KVA,Wide input range servo motor voltage stabilizer and AVR,Copper& Alumimum,IP20-54

MCU control.
Wide input voltage rang voltage stabilizer.
Excellent power supply with full protection.
Overload protection(on PCB)>120%.
Motor protection(Unique function).
Themistor,upgraded function to offer more accurate over-heat protection to the device.
If fan is not working, the device will cut off the output to avoide over heat.
Over voltage & Under voltage protection.
Led display/Colorful Led display.
More accurate output precision<2%.
IP20, IP54 is optional.

Technical Parameter

Specification		500VA 1000VA 1500VA 2000VA 3000VA 5000VA
Input	Phase	Single phase
	Voltage	AC 150V~250V/70V-150V(OPTION)
	Frequency	50Hz/60Hz
Output	Phase	220V/230V/240V ±2% OR 110V/120V/130V±2%(OPTION)
	Capacity	400W 800W 1200W 1600W 2400W 4000W
	Frequency	50Hz/60Hz
Low voltage protection		AC184V±4V/AC105V±4V
Over voltage protection		AC 246V±4V/AC142V±4V
Time delay		5sec/255sec (to be select)
Overload/Short circuit		Dual protection (fuse/MCB+MCU)
PCS per Cartpon		4 1
Shipping Wt.(kg)		16.6 21.35 23.15 7.90 11.45 20.80
Efficiency		98%
Acoustic		<50dB
Environment Temperature		-5℃~40℃
Environment Humidity		20% to 90%

Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54

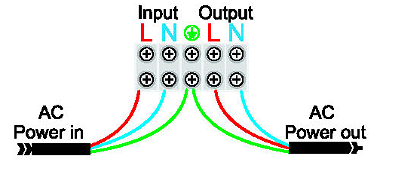

Terminal

Ideal chioec for protecting household and office electric appliances with high reliability and cost-effective. Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54

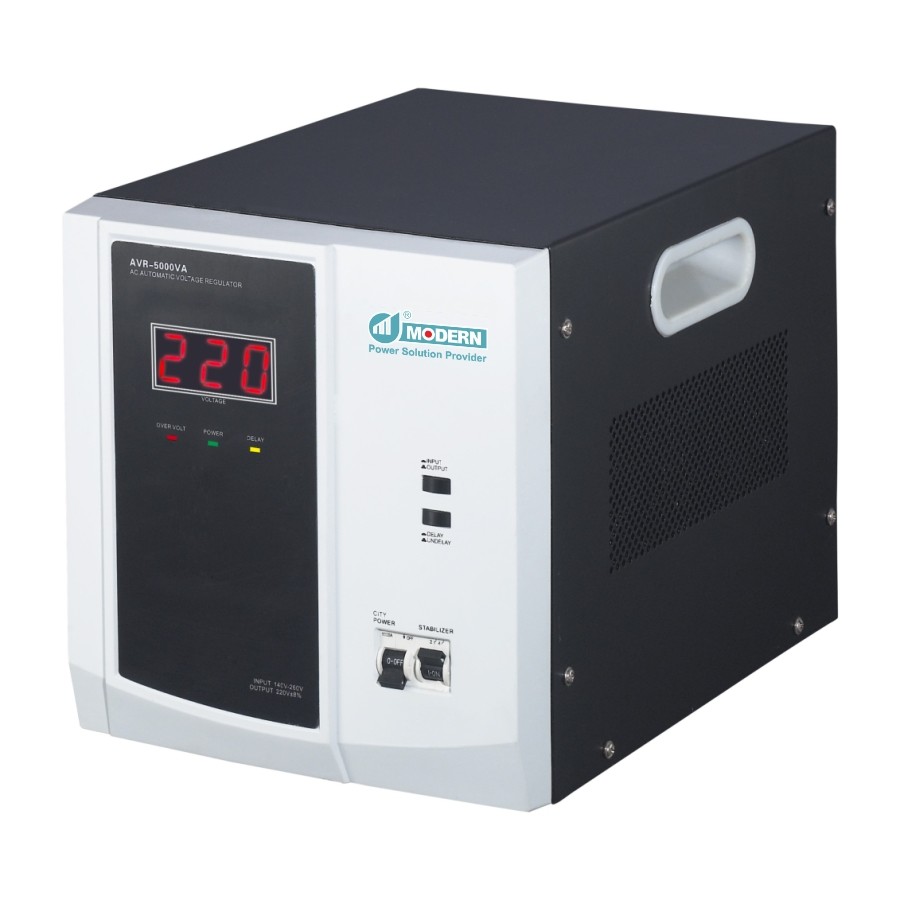

Black&white

Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54

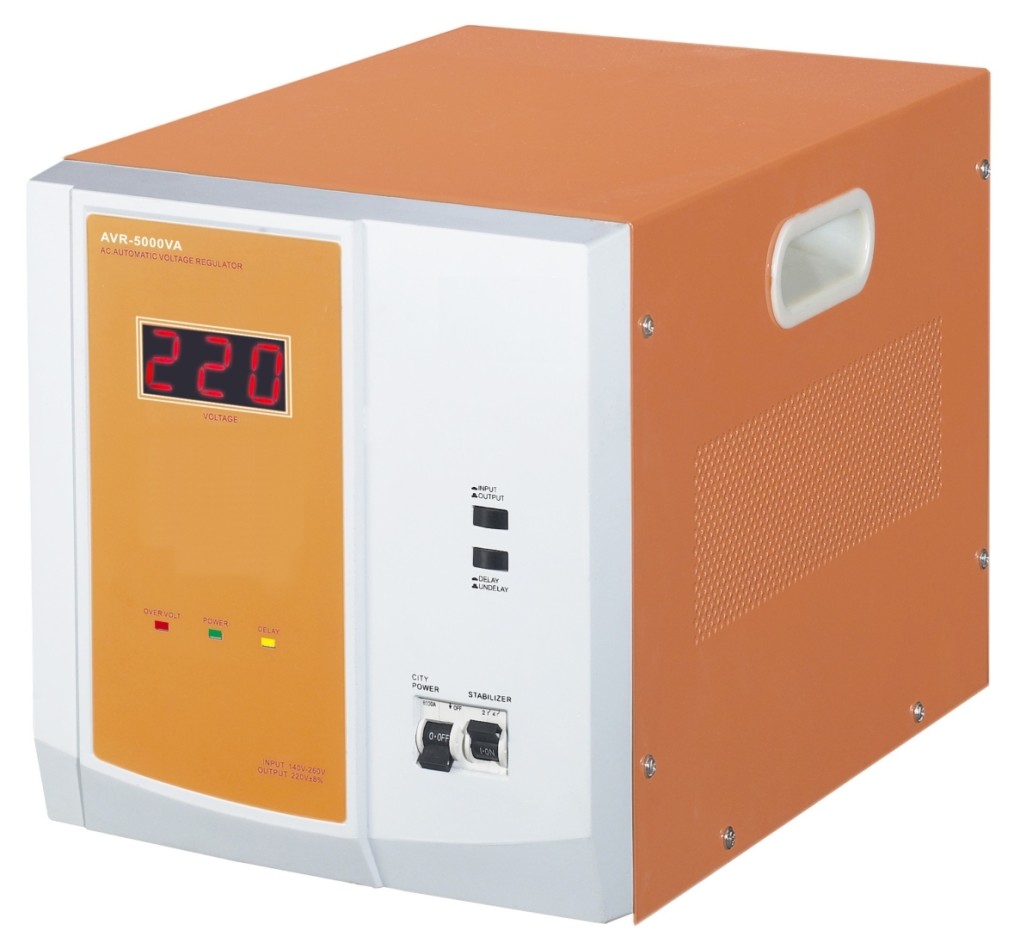

Yellow & white Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54

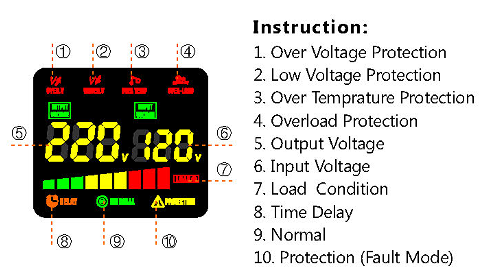

Colorful screen

Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54

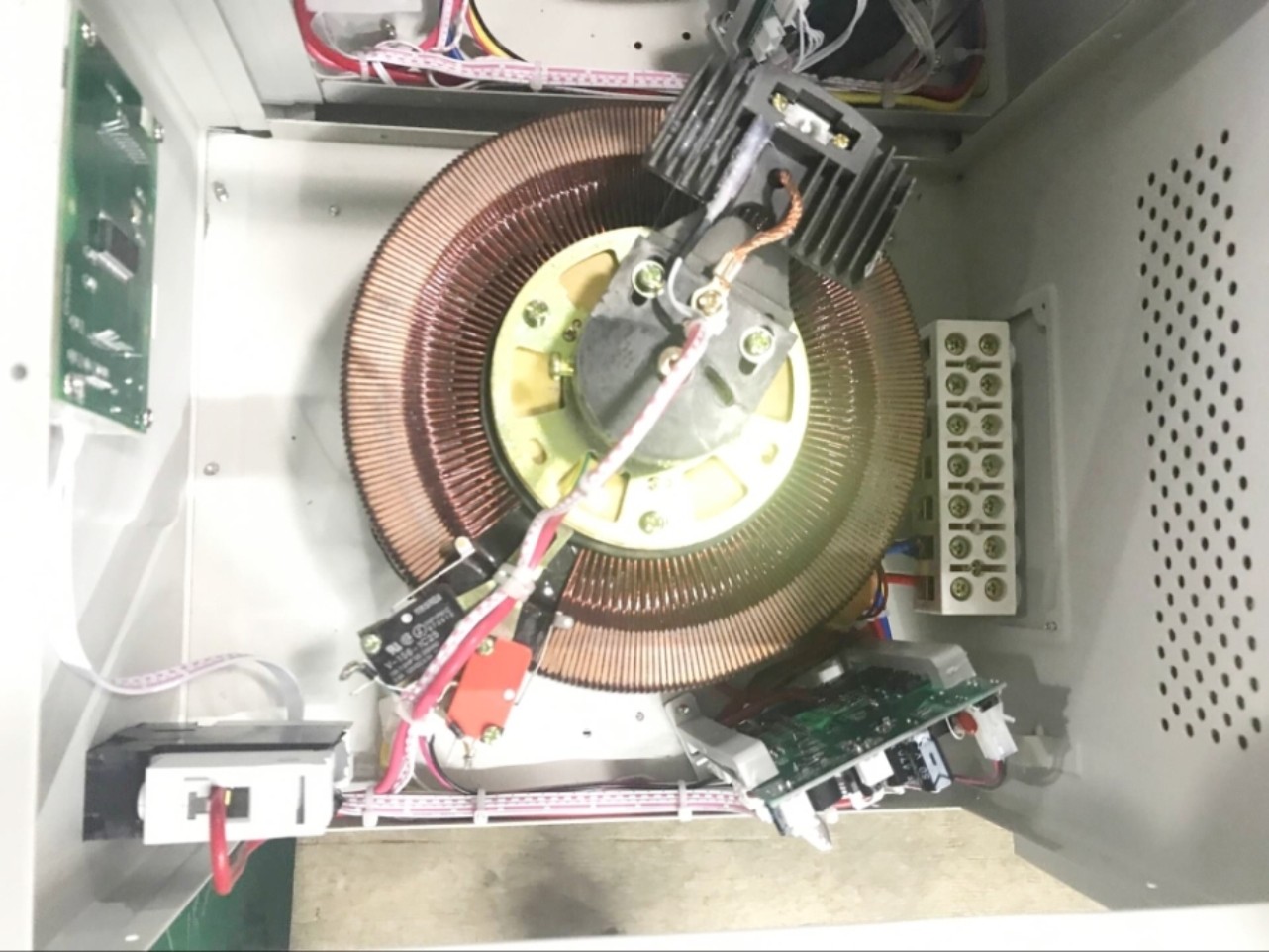

Copper winding

Copper / Alumimum SVC-0.5KVA~30KVA Avr Voltage Regulator Stabilizer IP20-54

MCU control
