3KVA Single Phase AC Power Stabilizer , 50Hz Wall Mount Automatic Voltage Regulator

Product Categories
Wenzhou Modern Group Co., Ltd. ( Wenzhou Modern Completed Electric-power Equipment Co., Ltd. )
Contact Now

3KVA Single Phase AC Power Stabilizer , 50Hz Wall Mount Automatic Voltage Regulator

Brand Name : Modern

Model Number : AVR

Certification : CE,ISO 9001

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 500 unit/month

Delivery Time : 30 days

Packaging Details : Wooden Packing

Input Voltage : 125V~270V(4 relays),100V~270V

Output Voltage : 220V/230V/240V±3%(Optional)

Frequency : 50/60Hz

Phase : Single phase

Time Delay : 6s/180s

Efficiency : 95%

Contact Now

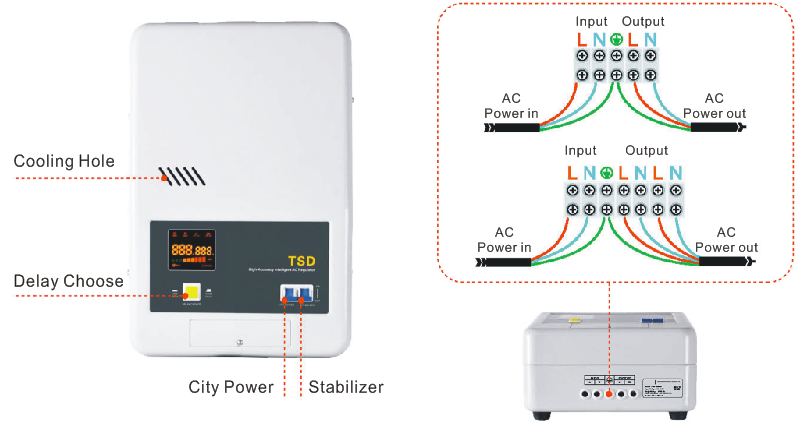

High Quality 3KVA Single-Phase AC Power Stabilizer,50Hz Wall Mount Servo Motor Automatic Voltage Regulator


Description:

TSD series servo type AC voltage stabilizer,which is an improved design of SVC series products, comes with superior quality,enhanced functions and modern design.
Capable of being mounted on wall, it saves space significantly.
It mainly features in a modern design and various protections against,over-voltage, under-voltage,overload,over temperature and time delay,enjoying a great popularity for residential,hospital,commerical applications etc.

  • Input Range:125V~270V(4 relays),100V~270V
  • (5 relays),80V~270V(6 relays)
  • Over voltage & Under voltage protection
  • Over temperature protection
  • Reaction time(voltage stabilization time)≤200ms
  • Short delay(3~6s) & Long delay(3~6min)

3KVA Single Phase AC Power Stabilizer , 50Hz Wall Mount Automatic Voltage Regulator
Technical Specifications:


SPECIFICATION500VA1000VA1500VA2000VA3000VA
InputPhaseSingle Phase
VoltageAC 150V-250V/70V-150V/50V-250V(Optional)
Frequency50Hz/60Hz
OutputPhase220V/230V/240V±3%(Optional)
Capacity400W800W1200W1600W2400W
Frequency50Hz/60Hz
ProtectionLow VoltageAC 184±4V
Over VoltageAC 246±4V
Time Delay3-7sec/3-7min Selectable
Overload/Short CircuitYES
PackagingPcs per Carton41
Shipping Wt.(Kg)16.621.3523.157.911.45
Packing Dimensions(mm)245×340×425495×285×390355×295×240365×275×280540×325×270
EfficiencyAC-AC>95%
AcousticNoise Level≤50dB
EnvironmentTemperature-5℃ to 40℃
Humidity20% to 90%
QTY(pcs)20FT32002100210011201120


SPECIFICATION3000VA5000VA7500VA100000VA(Vertical)
InputPhaseSingle Phase
VoltageAC 150V-250V/70V-150V/50V-250V(Optional)
Frequency50Hz/60Hz
OutputPhase220V/230V/240V±3% or 110V/120V/130V±3% (Optional)
Capacity2400W4000W6000W8000W
Frequency50Hz/60Hz
ProtectionLow VoltageAC 184±4V
Over VoltageAC 246±4V
Time Delay3-7sec/3-7min Selectable
Overload/Short CircuitYES
PackagingPcs per Carton1
Shipping Wt.(Kg)11.4520.827.6530.5
Packing Dimensions(mm)540×325×270 610×360×305370×330×580
EfficiencyAC-AC>95%
AcousticNoise Level≤50dB
EnvironmentTemperature-5℃ to 40℃
Humidity20% to 90%
QTY(pcs)20FT1120600420400



Competitive Advantage:
Small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage protection etc.

3KVA Single Phase AC Power Stabilizer , 50Hz Wall Mount Automatic Voltage Regulator
